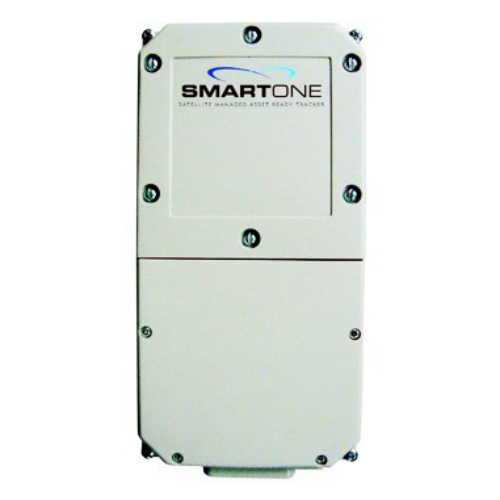

SmartOne B/LP Asset Tracker Globalstar

The SmartOne LP can be line-powered (operates on external power) or in the absence, interruption or failure of line-power, the SmartOne LP will automatically switch to battery back-up to ensure transmissions continue. When using linepower, the user has maximum flexibility in messaging frequency allowing for regular monitoring of asset location. The SmartOne LP utilizes motion sensors, comparative GPS positions and custom
configured sensors to gather and transmit asset status information. Each SmartOne LP is configured to track its asset’s specific needs and provide intermediate and emergency alerts by email or text (VAR software integration required).

Specifications

Operating Specifications

Dimensions 3.25”H x 6.5”W x 1.0” D
Weight 13.5oz/385g (with 4 batteries and mounting hardware)
Operating Temperature -30° to +60° C Note: The unit shall remain operational over
the -40° to +85°C range, though may experience battery life
and RF signal degradation
Line power Up to 48 volts DC
Battery Type 4 AA 1.5V lithium
Provides 3+ years of battery life
Removes the need to purchase expensive proprietary
batteries for replacement
Certifications UL913 and CSA C22.2 No. 157 Certified Intrinsically Safe for
use in Class I, Division 1 Groups A, B, C, D environments for
US and Canada
ANATEL Certification for Brazil (pending)
FCC CFR Parts 15 and 25
Industry Canada
CE Mark (European Certification)
COFETEL
Standards SAE J1455 MIL STD 810
NEMA 4X / IP68
RoHS Compliant
Satellite Technology Global LEO Satellite op

Feature Set

STANDARD MESSAGING:
• Wake, GPS locate, transmit location,
resume sleep
• Up to 12 programmable sleep time-ofwake
settings

ALTERNATIVE REPORTING:
• Alternate supervisory reporting
schedule triggered by alarm or motion
• Transmits GPS location on alternate
interval for programmed time or while
alarm remains active

INTEGRATED VIBRATION SENSOR:
• Message on start and stop
• Engage interval override on motion for
set time or while in motion
• Integrated Motion (Vibration) Sensor
sends messages on start and stop
motion event

MESSAGING COST REDUCTION:
• Reduced satellite messaging if asset
remains in same location or cannot
obtain a GPS fix (indoors)

CHANGE OF LOCATION:
• Theft recovery reporting based on
distance moved
• Reduced messaging mode

SERIAL COMMUNICATION CAPABILITY:
• User defined messages
• Serial (TTL) I/O capability to interface
with remote passive and smart sensors
and deliver user defined messages
